The idea of combining two 10-hole harps behind a single mouthpiece is not new - but it's not easy to get good reed response, and has never been done convincingly before. That's all changed! After intensive R&D over the past couple of years, I've come up with a quick-change assembly that really works. I'm now releasing my ground-breaking Twin-Diatonic harps in a range of exciting options - check out the two videos to see and hear them all in action.
An obvious choice is to make 8 of the bends the same as on stock harps (which only has 8 bendable notes), and the rest to go down a semitone. This gives a fully chromatic harp with bends alone, plus lots of cool 'bend enharmonics': notes you can get two ways, bending or non-bending. Another way is to tune the x-reed so the bends go down to the next note of the home scale, whatever that is. It's very expressive - I demonstrate a Solo tuned version in the video.
While you can just buy the front unit to assemble your own OctaHarp using stock combs, trying to fit single valves to combs not designed for them can be tricky and frustrating. Adding my specially-designed PowerCombs and Stealth-Valves to your order will simplify and speed up the process of making an OctaHarp that sounds great straight away. They are available at half-price when ordered for the TwinDiatonic harps.
The one essential part you require is the Front Unit. However, where appropriate, we recommend you also purchase PowerCombs and Stealth-Valves. They are specially designed to suit the TwinDiatonic harps; we can't guarantee all other combs will fit perfectly, and combs without valve pockets will definitely cause more hassle to install valves. (Lipped-comb versions will use the stock comb). You need to supply the harmonicas, or order them from your customiser. Please watch all the relevant videos above to help you make an informed choice of ordering option.
Joel is our recommended customiser to make your complete OctaHarp . If you would like to commission Joel then please place your order with him on his website below. Email: info@jaharmonicas.com Website: jaharmonicas.com
Tech 0: Making an Octa-Harp from the PowerParts kit
Tech 1: Assembly
The OctaHarp Selectable differs from my other small 10-hole octave harmonica (the OctaHarp) in two significant ways: the twin harmonicas are inline front-to-back, and you can choose to play them separately or together! The front harp is in the standard range, and the rear harp in the low range.

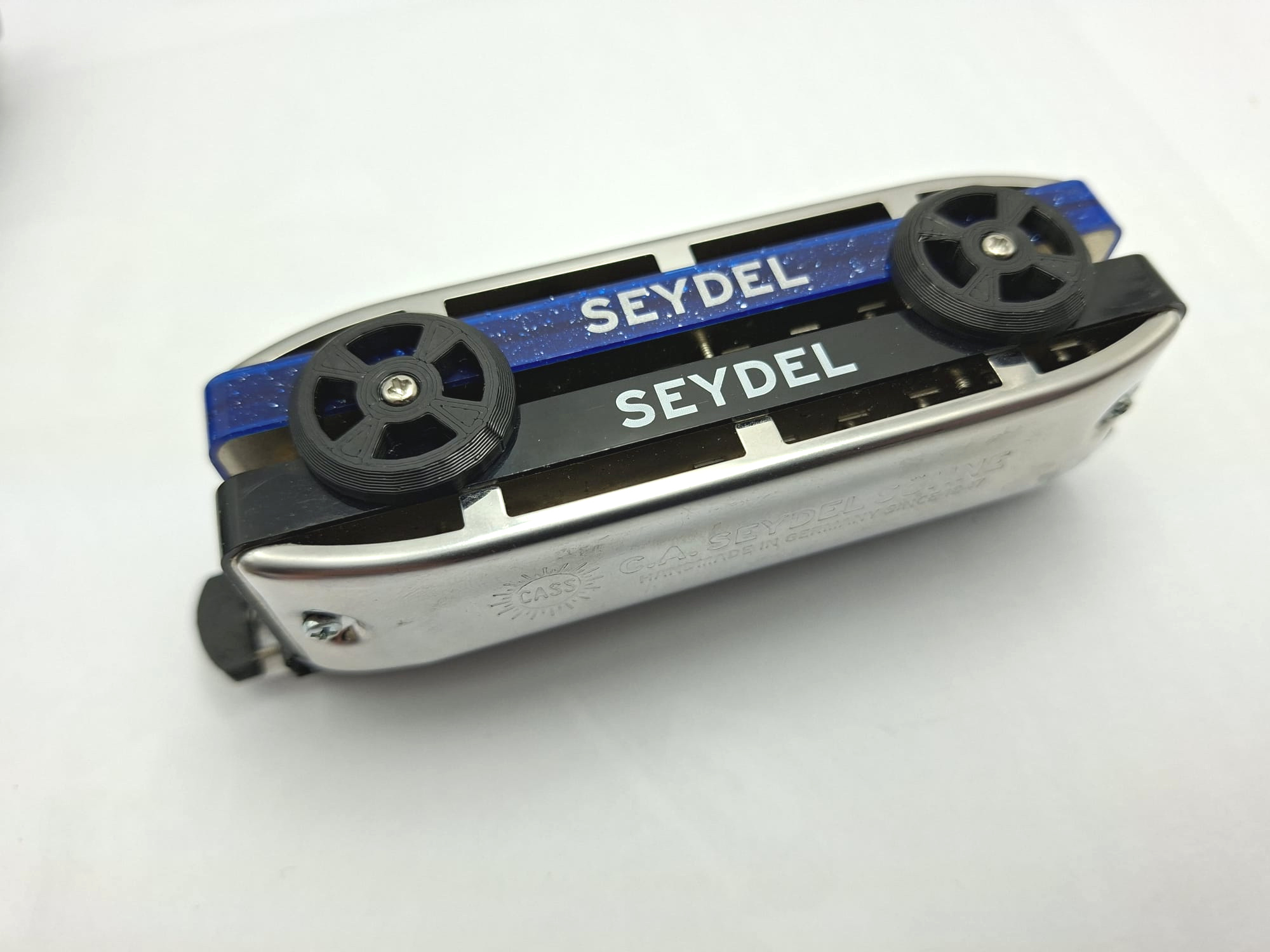

Only certain brands and models are available in both standard and low ranges. At present the OctaHarp Selectable is designed for Hohner (Thunderbird/Marine Band 1896/Crossover/Marine Band Deluxe) , Suzuki (Manji/Low Manji) and Seydel (Classic, 1847, Noble, Lightning - plus Low Versions) harmonicas.
The front harp has holes all the way through the back of its comb, which are blocked in the default position, so just the front harp sounds. The front comb slides along the face of the rear one, and is held in place by a small spring. With a quick press of your thumb or finger the two combs come into line, the through-holes open, and all the reeds on both harmonicas vibrate to give you that fat, rich octave sound. In single-harp mode the front harp plays exactly like a normal blues harp, with all the bending and expression you're used to. But you can instantly switch to playing it as an octave harmonica - it's truly two great harps in one! Check out the video to hear it in action.
I've shot a detailed instructional video on how to finish and assemble your PowerParts Kit for it - please watch before you buy. If you're the hands-on type and comfortable working with basic tools, you'll have no trouble following along with the simple steps involved.
If you don’t have the necessary making skills, or simply prefer to get a fantastic OctaHarp Selectable ready to play awesomely out of the box, we will send your PowerParts Kit to a harmonica tech/customiser of your choice to do the job for you. In that case the arrangement for the overall price and features you want is entirely between you and them. Here is a list of people you can contact to do the work:
Tech 2: Fine-tuning for Pure Octaves
Gasket Valves: Introduction and Fitting Demos
While you can just buy the front unit to assemble your own TremoloHarp using stock combs, trying to fit single valves to combs not designed for them can be tricky and frustrating. Adding my specially-designed PowerCombs and Stealth-Valves to your order will simplify and speed up the process of making a TremoloHarp that sounds great straight away. They are available at a half-price when ordered for all the TwinDiatonic harps. Watch the videos to see how the valving is done, and how these harps can be assembled/disassembled very quickly and easily:
POWER-PARTS KITTo slash the price and offer immediate shipping, we've added a Raw Parts Only option for all versions of the TremoloHarp. I've shot a detailed instructional video on how to finish and assemble your PowerParts Kit for it - please watch before you buy! If you're the hands-on type and comfortable working with basic tools, you'll have no trouble following along with the simple steps involved. You'll gain knowledge and satisfaction making it yourself, and save money in the process. Follow the video closely and you'll be sure to get a good outcome. However our responsibility is only with the PowerParts we make and supply, not with your finishing/assembly skills - the end result is up to you. Or, if you prefer, send your PowerParts Kit to a harmonica tech/customiser of your choice to do the job for you; in that case the arrangement is entirely between you and them. Here is a list of people you can contact to do the work: Harp Techs.
FINISHED PARTSIf you wish to pay extra for us to do the finishing/assembly of the parts, the choice is yours. It will add about a week to the shipping time. Remember you will still need to supply the harmonicas and fit them to the parts you choose, or get a customiser to do that job.
Tech 0: Making a TremoloHarp/OctaHarp from the PowerParts kit

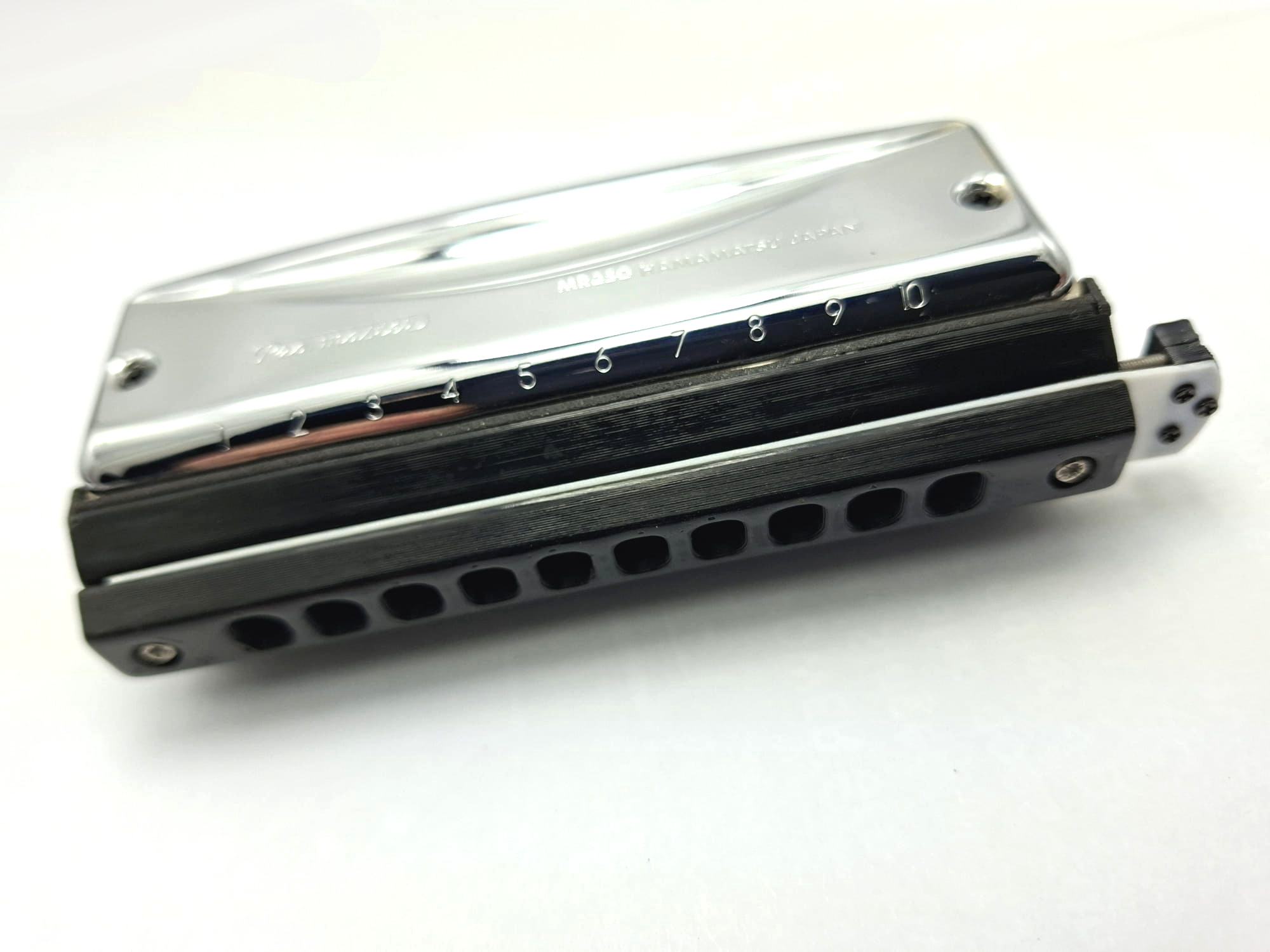

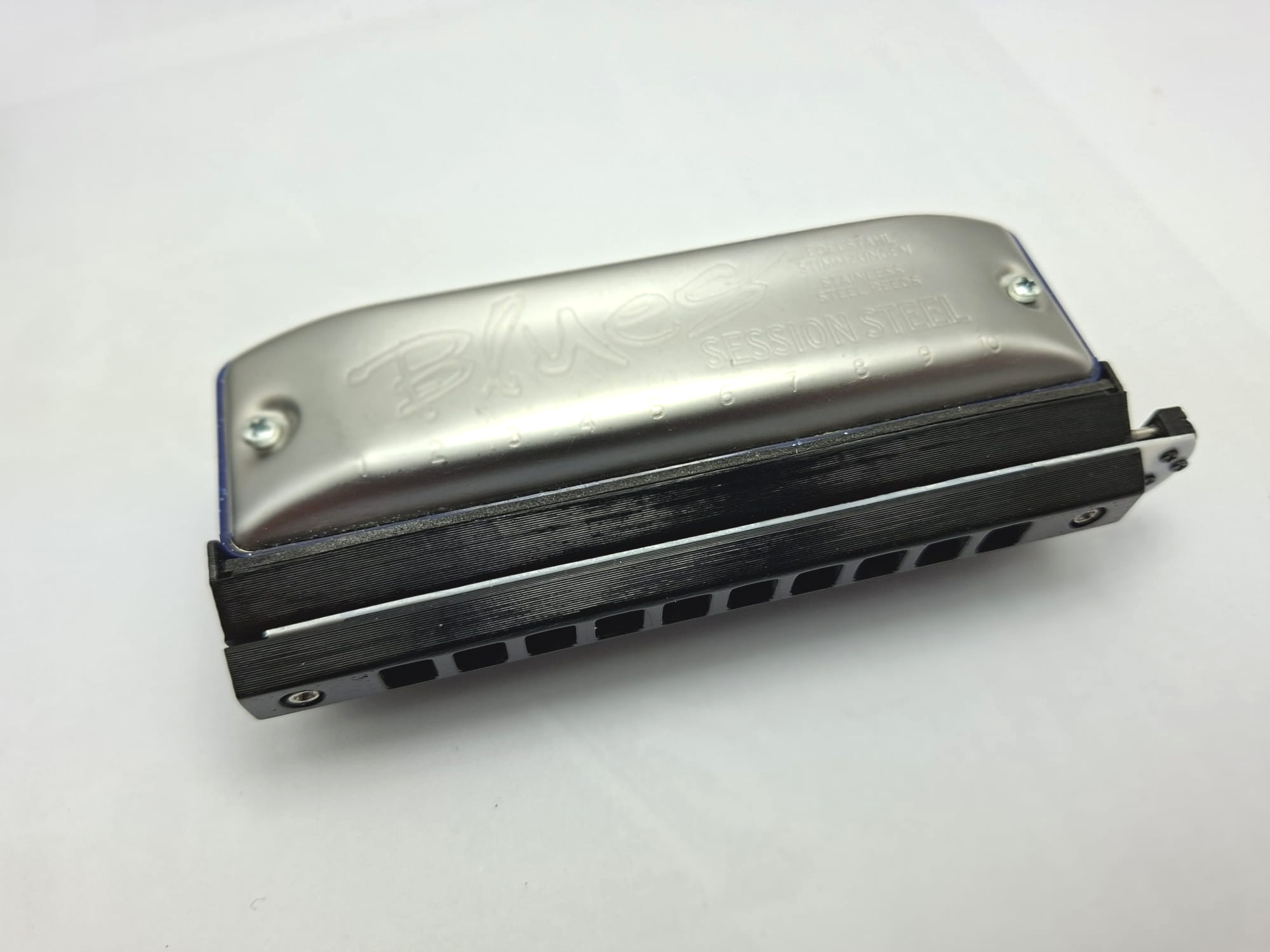

One obvious choice for the SwitchHarp would be for the slider to select between two harmonicas a semitone apart, to make a 10 hole mini-chromatic. This could be in standard Richter tuning, or in any one of many alternate tunings (eg. PowerBender, PowerDraw, Paddy Richter, Solo Tuning, Circular Tuning, whatever you like!). And you can swap in different keys quickly and easily. I prefer it in half-valved setup, allowing your normal bends but making the non-bending notes sound stronger and with valved expression. However if the harps behind are very well customised there is the option to have them un-valved, which would allow overblow playing for those used to that style.
But this is just one possibility for the Switch-Harp - here are some more ideas:

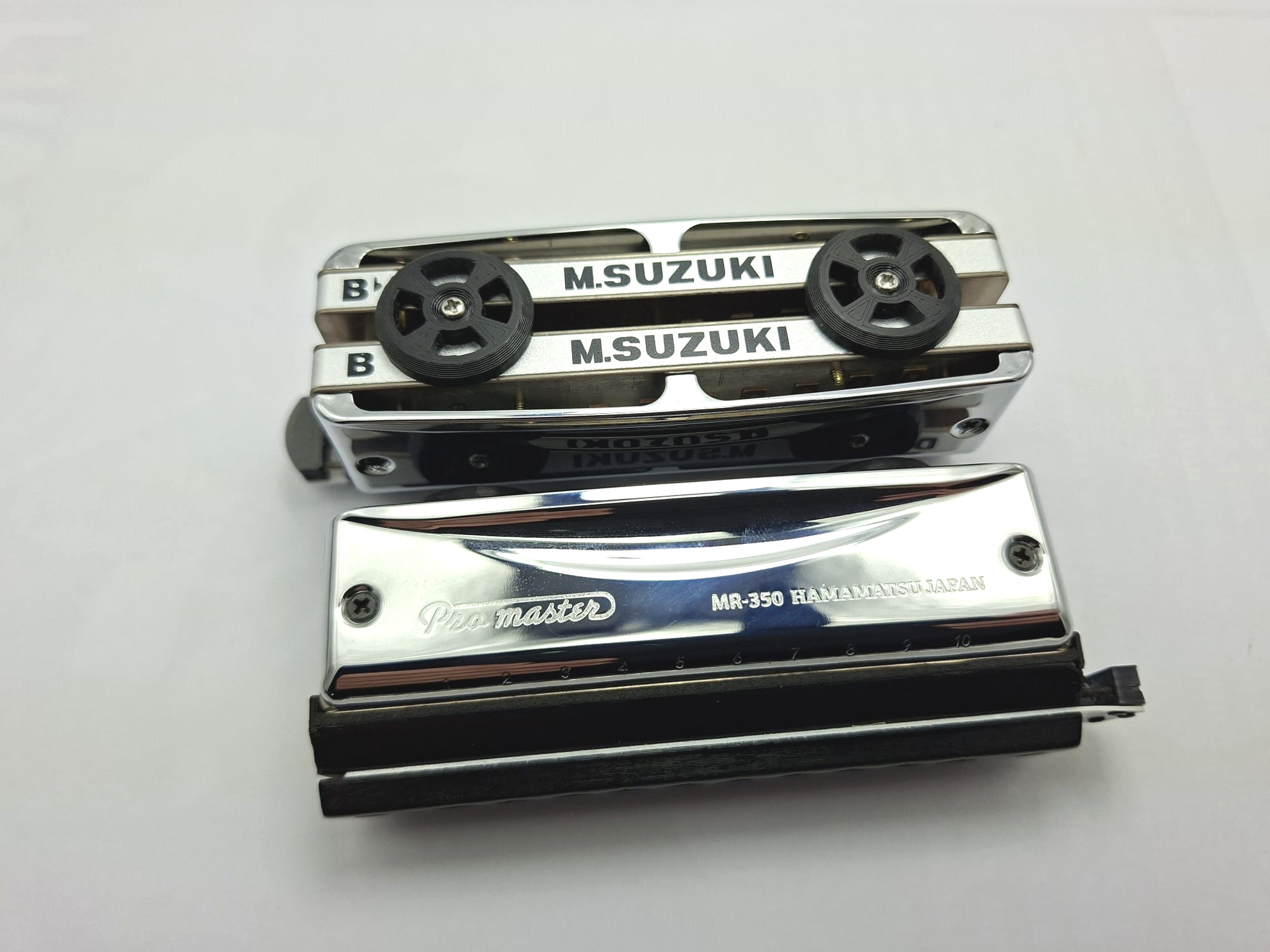

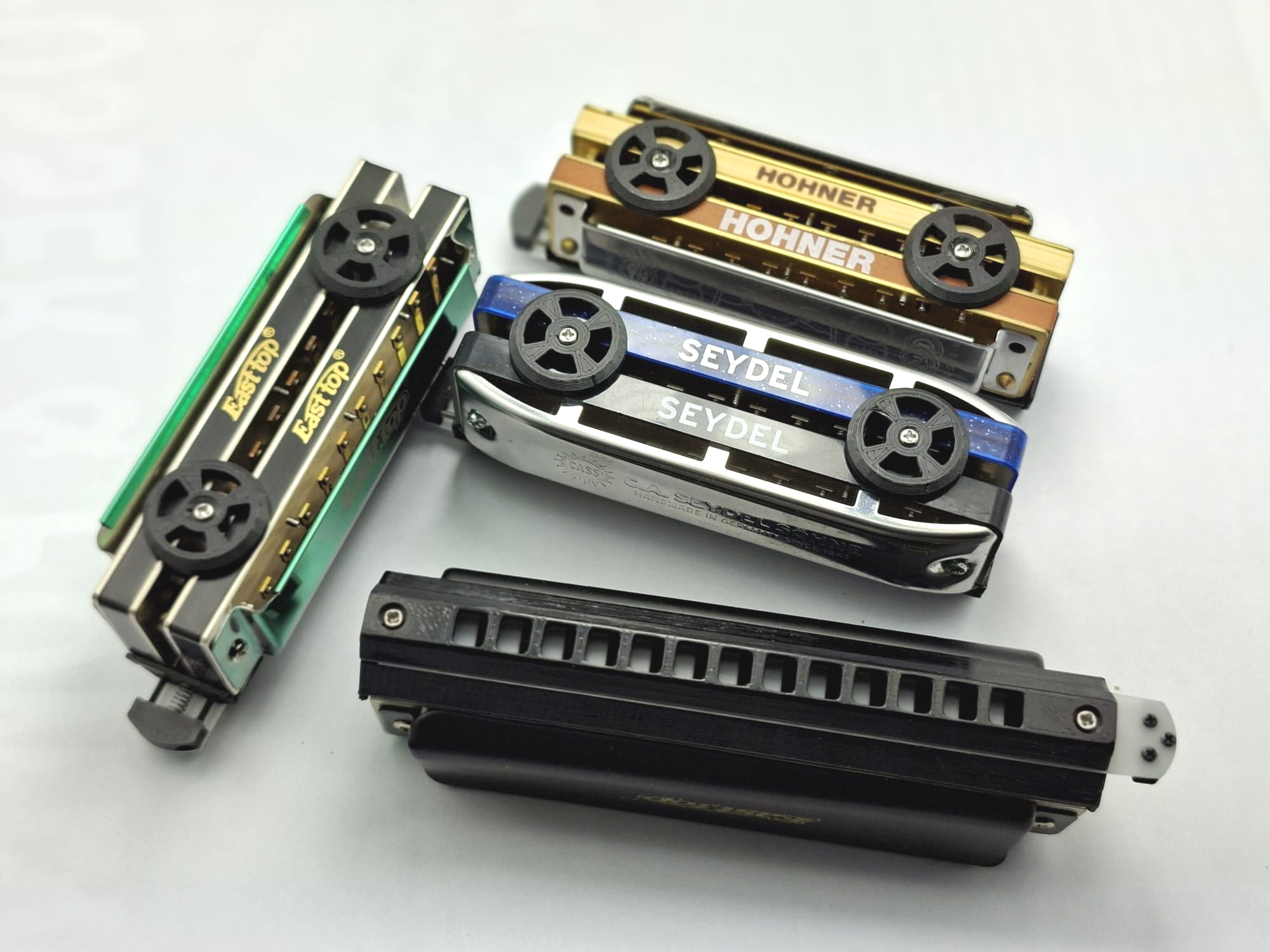

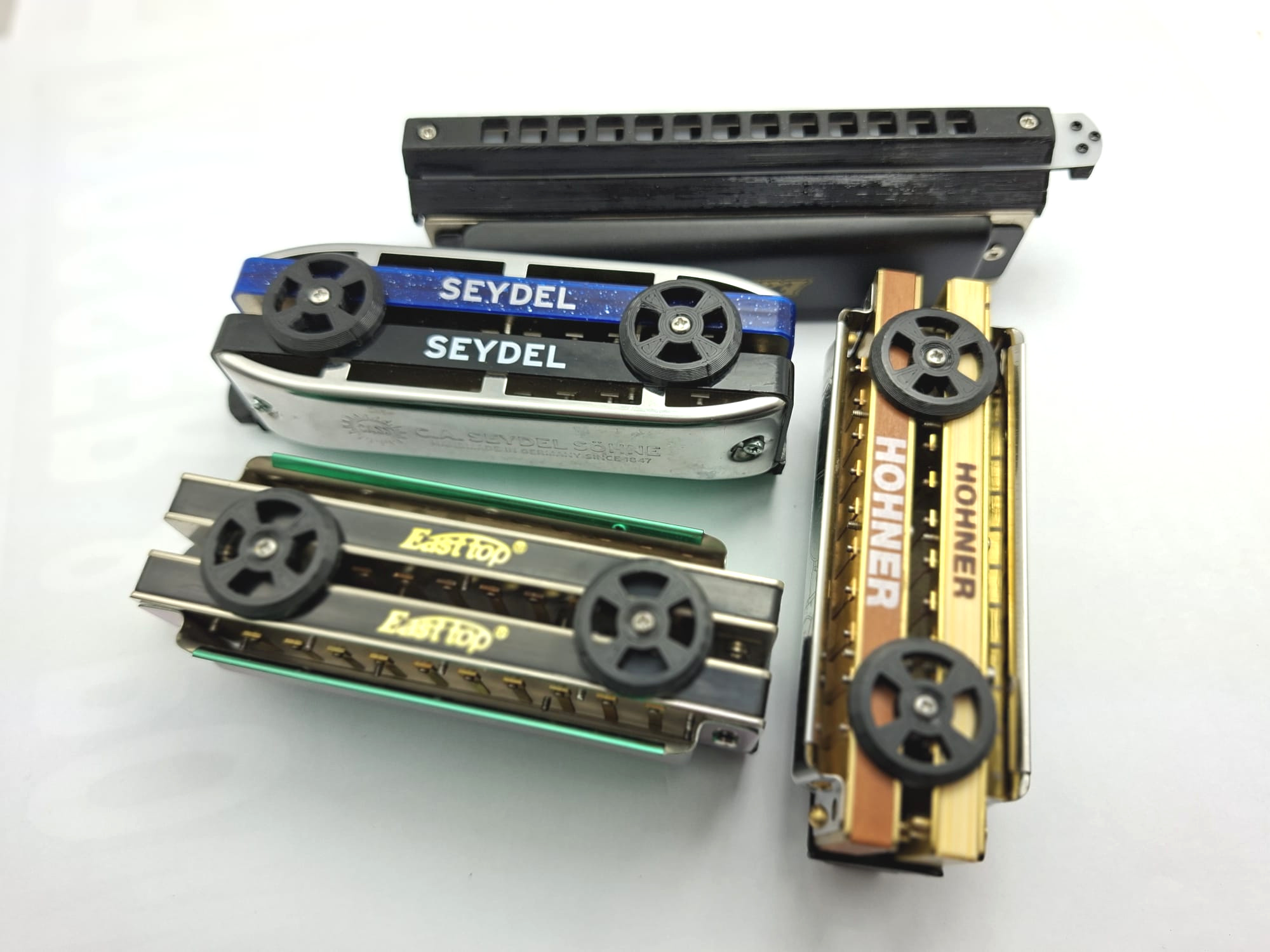

Those are just a few of many options. My Switch-Harp is the Chamelion of the harmonica world! Because the same front unit will allow quick changes of the harps behind, you could use the same one for a multitude of twin-harp configurations if you want.

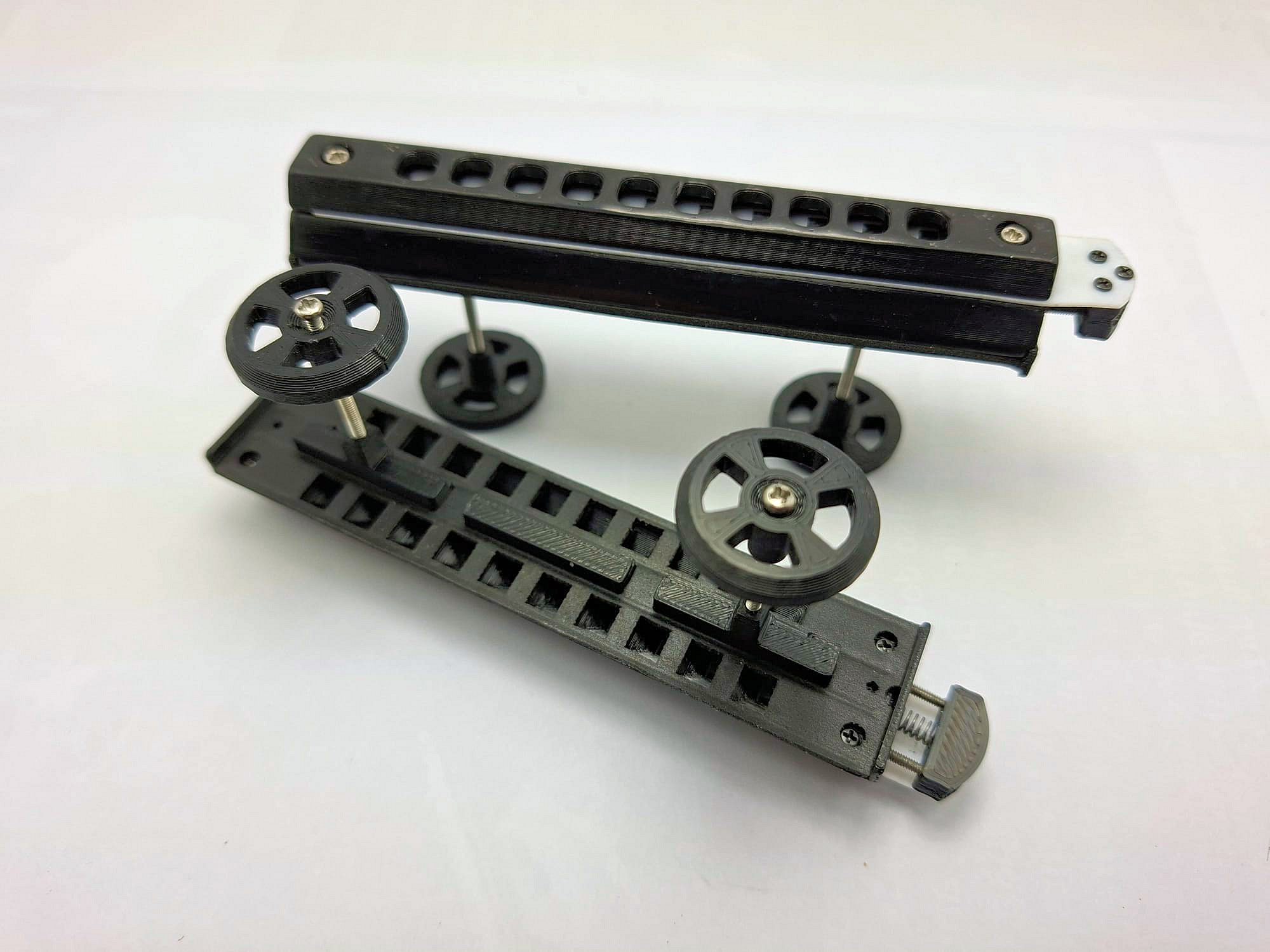

Here's a video showing how quick and easy it is to swap harps in and out, and another demonstrating the Switch-Harp as a MiniChrom:
The Switch-Harp in Action! Check out the funky sound and exciting new musical ideas/techniques in these two excellent videos by Mitch Weiss and Boris Plotnikov:
I recommend half-valving for most Switch-Harp options. To simplify this process, I've created my easy-fit Gasket Valves. which will simplify and speed up the process of making a Switch-Harp that sounds great straight away.
One thing to bear in mind is that the best range of keys is from C down. Higher keys suffer from detuning of the high reeds due to the Helmholtz Resonance Coupling phenomenon. Even on lower keys you may have to do a bit of fine tuning on the high notes to bring them up to tune with the rest of the harp.
This is not difficult for players used to fine tuning. Check the three tech videos opposite; the first shows how to finish and assemble the raw parts (if you are going for the PowerParts option), the second video is for general assembly with your harmonicas, and optimisation of the Switch-Harp, and the third video deals specifically with tuning compensation in the high octave.
Tech 0: Making a Switch-Harp from the PowerParts kit
Tech 2: Tuning
The one essential part you require is the Front Unit. However, where appropriate, we recommend you also purchase Gasket Valves. They are specially designed to suit the TwinDiatonic harps. Please watch all the relevant videos above to help you make an informed choice of ordering option.
Check out Kevin McCarthy playing his OctaHarp in a session. Your browser does not support the video tag.
" Excited to have my Melody Maker Switch Harp in hand for the first time! The sound is excellent. The mechanism will take some getting used to. Specifically, the slider movement is not like a chromatic because instead of having the slider move while everything else stays static, on the Switch Harp the entire mouthpiece moves within your mouth. Or alternatively, the slider stays fixed on your lips and the mass of the two harmonicas behind moves. After a few more minutes of play - a few more impressions. I'm comparing my Melody Maker Switch Harp to a Melody Maker X-Reed Sub-30, another fine harp! And now I'm realizing that if I push the harp further into my mouth and rest my lips on the covers, the slide moves more freely. Tongue blockers might like that embouchure more than pucker players like me! And the more I play the more I like it! Truly a novel and unique harmonica with an excellent tone. Jazmaan, From Brendan's Forum (Feb 2018)
After a few more minutes of play - a few more impressions. I'm comparing my Melody Maker Switch Harp to a Melody Maker X-Reed Sub-30, another fine harp!
And now I'm realizing that if I push the harp further into my mouth and rest my lips on the covers, the slide moves more freely. Tongue blockers might like that embouchure more than pucker players like me!
And the more I play the more I like it! Truly a novel and unique harmonica with an excellent tone. Jazmaan, From Brendan's Forum (Feb 2018)
" I really like my switch harp. Mine is a basically a pair of half- Valved Paddy Richter's. I haven't had as much time to play or experiment with it as I would have liked but it is a blast so far. The moving mouthpiece feels odd and unwieldy for about 20 minutes, and then it is no problem at all and feels natural. I can play fully chromatically with the button and bends, and can color every note with blow or draw bends or the slide. It's a blast. I will probably be retuning some more reedplates so I can make other combinations. It's awesome. You could build a case to hold a set of comb/ cover combinations and be ready to switch out in moments. " CrawfordES, From Brendan's Forum (Feb 2018)
Mine is a basically a pair of half- Valved Paddy Richter's. I haven't had as much time to play or experiment with it as I would have liked but it is a blast so far. The moving mouthpiece feels odd and unwieldy for about 20 minutes, and then it is no problem at all and feels natural. I can play fully chromatically with the button and bends, and can color every note with blow or draw bends or the slide. It's a blast. I will probably be retuning some more reedplates so I can make other combinations.
It's awesome. You could build a case to hold a set of comb/ cover combinations and be ready to switch out in moments. " CrawfordES, From Brendan's Forum (Feb 2018)
